Robinson General Epoxy Dispenser

Electronic Variable Ratio Epoxy Dispenser

The Robinson Electronic Variable Ratio Epoxy Dispenser unit is an electrically driven twin pump unit of variable ratio and output. This unit has two electronic inverter controlled pumps delivering epoxy in a continuous on demand flow or optional shot sizing to a hand held gun or fixed station output with static mixers.

Digital Read-outs:

It is used with digital readouts showing pump speed and ratio. PLC controls can be added to control all functions of pouring.

Epoxy Feed:

The unit can have various sizes of containers, hoppers and drums to feed epoxy of varying viscosities into the pumps.

Versatility:

Robinson's EVR Epoxy units can be used from small epoxy injections for electronics up to high capacity, high viscosity epoxy glues for crusher back plates in mining smelters. Optional roller applicators can be fitted for applying epoxy to floors, composites manufacture and all industrial applications.

Specifications

Cavity displacement pumps of various sizes depending on epoxy and flow rates. Any number of pumps can be fitted.
Static spiral mixers.
Fixed station or hand held gun.
Most output with cavity pumps sized to suit.
Positive displacement pump linked to resin pump. Ratio 1%-2%.
Electronic Variable Ratio Epoxy Dispenser Pouring/non-spray 5CFM.
240 volts AC x 50 cycles or to suit.
  • Longer hose lengths. Unit can be used with Polyurethane foam and elastomer, silicons, polyester resins, acrylics and other 2/3 or more part materials.
  • Heating tanks and hoses.
  • Pantograph boom for factory operation.
  • Tank agitator.
  • Additional pumps for colours/additives.
  • Timers for shot sizing when required.
  • PLC controls for multiple controls.
  • Designed to customer requirements.

Gallery

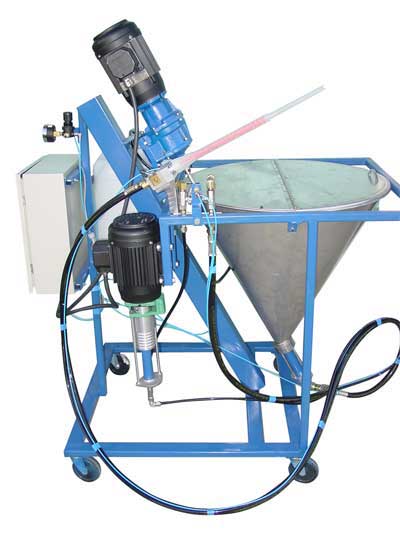

EVR Epoxy Dispenser Unit
